Krones has revamped the Dynafill, which has also undergone a number of field tests showing that the machine enables customers to implement new lines and energy-saving concepts.

One of the vital issues for any forward-looking brewery is this: How can I save energy throughout the production process in order to achieve a more sustainable footing? The answer is Brewnomic. This concept, developed by Krones subsidiary company Steinecker, enables a brewery to be energy-self-sufficient by smartly using and recovering the residual materials from the brewing and filling processes. Brewnomic consists of several modules, many of which relate to the brewing process. One module of Brewnomic is the Dynafill, which enables a multitude of savings – whether in terms of space requirements or energy consumption.

Innovating filling temperatures

This new type of filling into a vacuum is the basis for other spin-offs and advantages. Taking a look at the conventional filling process is beneficial because it helps to understand the reasons behind the new one. In a conventional filling process, the filling temperature, at around 6°C, is relatively close to the starting temperature of 1°C, at which most beers are stored. If a brewery were to increase the filling temperature, it would also have to provide for longer treatment times. As a consequence, conventional fillers would have to be significantly larger for the same output.

Filling into a vacuum, by contrast, which the Dynafill has translated into shopfloor reality, combines a number of advantages. Firstly, the filling process proper is significantly shorter, taking a mere 0.5 seconds. And secondly, filling temperatures of up to 30°Care possible without the need for a larger filler.

Energy savings - a powerful selling point

The smaller footprint is undoubtedly a benefit [to brewers? Please clarify] but the warm-filling option offers additional advantages when it comes to upgrading sustainability levels, including:

  • Lower water and heat consumption during bottle cleaning:​ The higher filling temperature shifts the temperature difference between that of the cleaned empty bottle and the filling temperature. This means higher discharge temperatures at the washer are possible, and less energy is consumed in the washing process since the empty bottles do not have to be cooled down so much after washing.
  • No warmer required:​ When the filling temperature is low and the ambient temperature high, a warmer is needed to avoid condensation on the filled bottles. With warm filling in the Dynafill, a warmer can either be dispensed with entirely or uses significantly less energy for warming the bottles.
  • It is possible to do without a tunnel pasteuriser:​ Filling and crowning the bottles in a single-process step reduces the microbiological risk of contamination in the filled but not yet crowned bottles. A flash pasteuriser in combination with the Dynafill is thus sufficient to ensure an impeccable product quality.
    Should pasteurisation nevertheless be necessary and/or desired, significant amounts of energy can be saved here as well because the temperature difference between filling and pasteurisation temperature is substantially smaller, which means less energy is required for pasteurising.

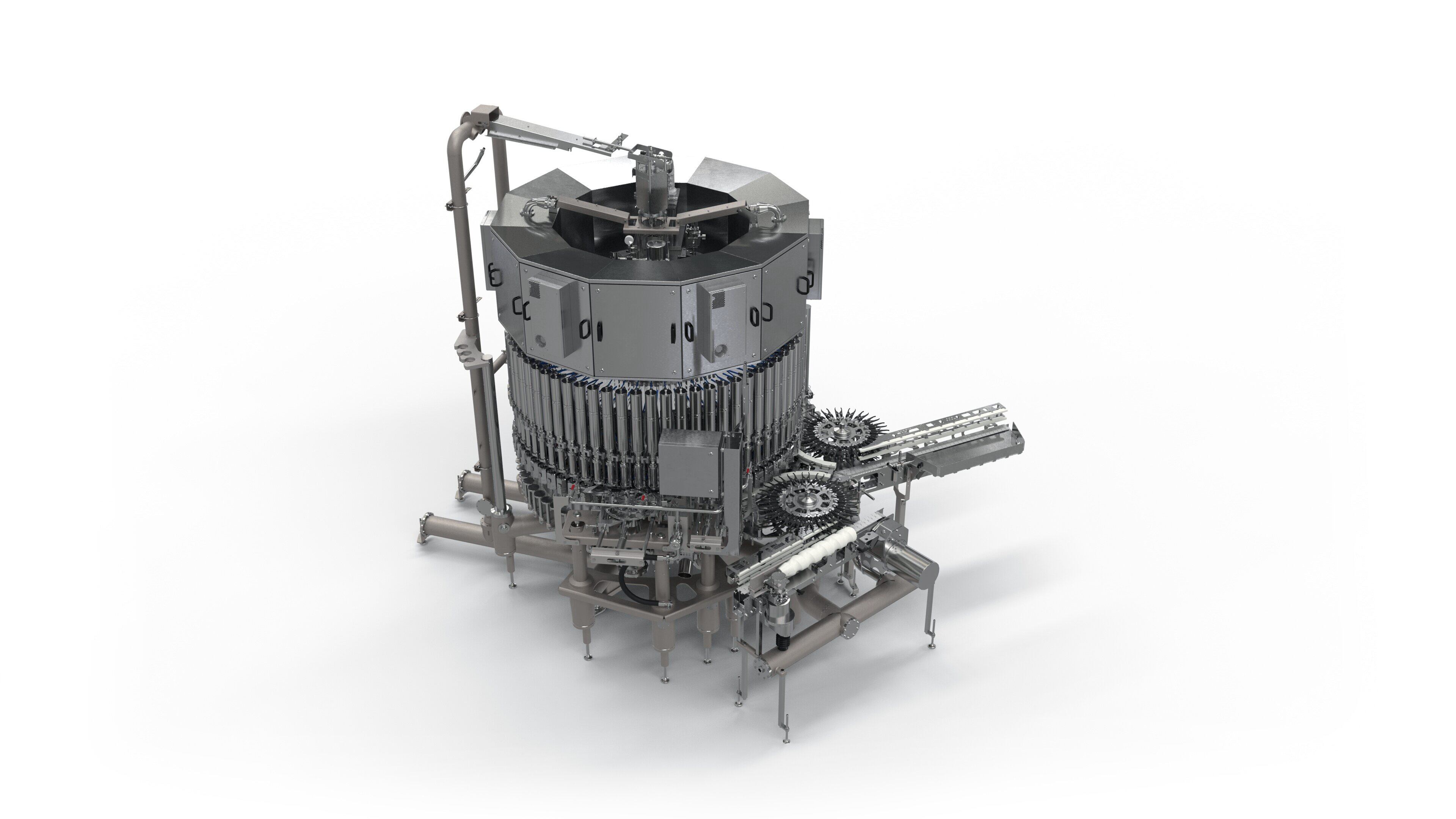

202206SC02_0011_Preview_Print
In the Dynafill, the crowning head is directly linked to the filling valve – and also included in the filler’s CIP circuit. That means it is cleaned with acid and caustic (not with foam), which significantly upgrades product safety during filling.

New line concepts conceivable

All of the above factors add up to a number of rewarding advantages. However, the principle of warm filling provides much more than “merely” saving valuable energy. Thanks to a higher filling temperature, customers can invest and plan entirely new types of machine configuration within their kit – and thus fresh line concepts. This is because warmer and tunnel pasteuriser are no longer needed and the Dynafill takes up significantly less space than a conventional filler plus crowner:

- The combined machine’s footprint is substantially smaller since transfer sections and a separate crowner are dispensed with.

- If there is a sudden machine stop, no emptying sections are needed at the conveyors downstream of the filler because only crowned bottles leave the machine.

- With the vacuum-filling process, the higher temperature does not affect the filler size or the number of filling valves.

Factoring in all of these space-saving options opens up a whole new set of design possibilities for greenfield projects. Because the machine’s footprint is significantly smaller without impacting outputs, entirely new line and conveyor layouts can be planned.

Breweries considering the Dynafill to complement their existing filling line can also benefit from increases in output on the same, small line footprint. To put that in perspective: A conventional Krones Modulfill with a pitch circle diameter of 5,760 millimetres and 176 filling valves would be needed for an output of 62,000 bottles per hour, whereas the Dynafill requires a pitch circle diameter of 2,880 millimetres and 96 filling valves for the same hourly output.

Translating that into space on the shopfloor: 60 square metres for the Modulfill compared with 30 square metres for the Dynafill – meaning 50% less space needed for bottling and crowning alone.

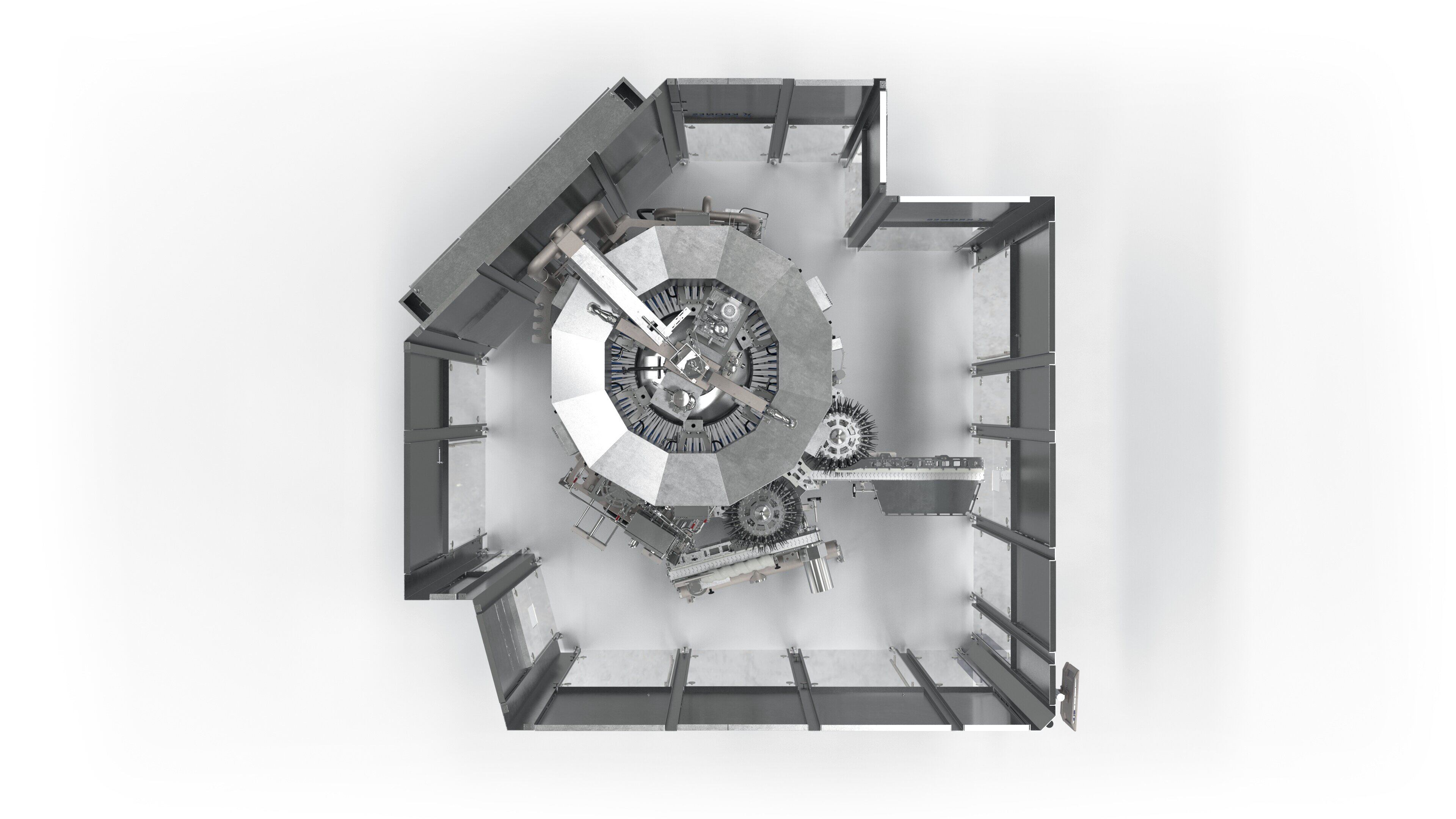

202206SC02_0001_Preview_Print

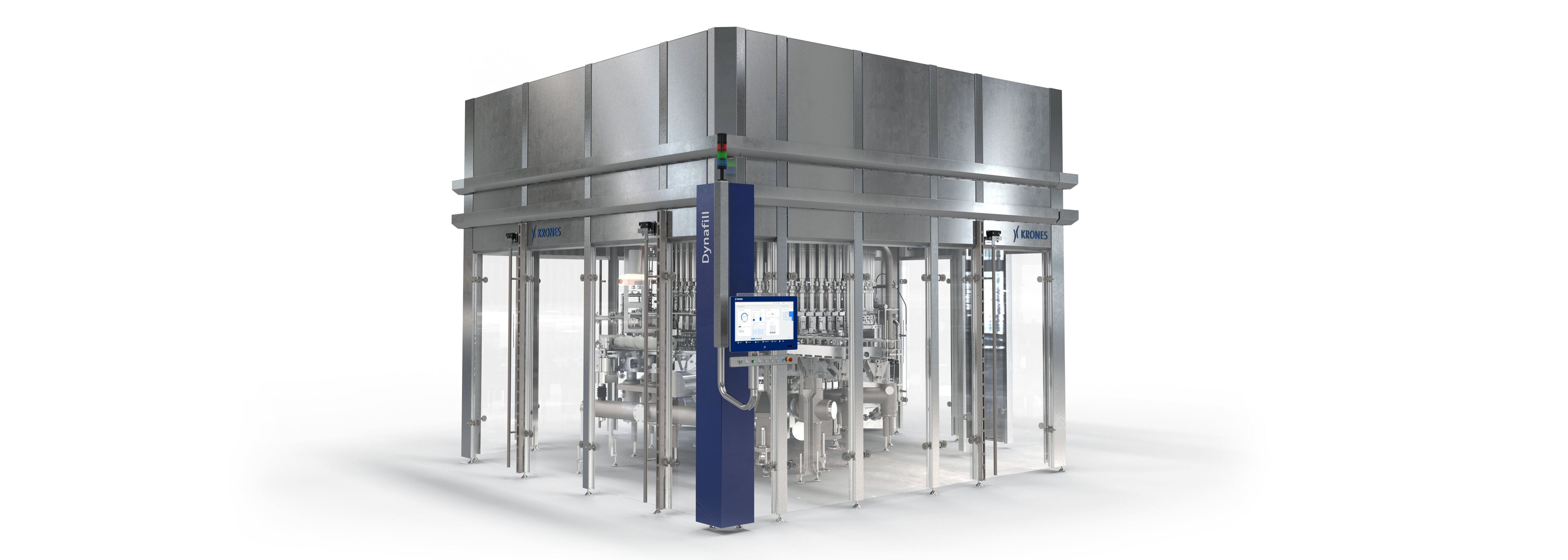

The Dynafill requires only 30 square metres of space.

Tomorrow’s beer-filling concept

Since the Dynafill entered the market at international trade fair drinktec 2017 as a stand-alone innovation in the field of filling technology, Krones has not only continued to develop and improve the machine itself but also conceptually progressed its role in the bottling line. Fitting in perfectly with a comprehensive approach to line planning, the Dynafill is integrated into a holistically conceived concept. Warm filling, in particular, offers huge potential here for re-using any energy released at another point in the production process. Besides for the brewing process itself in line with the Brewnomic concept, it would also be conceivable to use the surplus energy at another point in the filling process as cooling energy (in heat exchangers, for example) or for another purpose in the plant.
